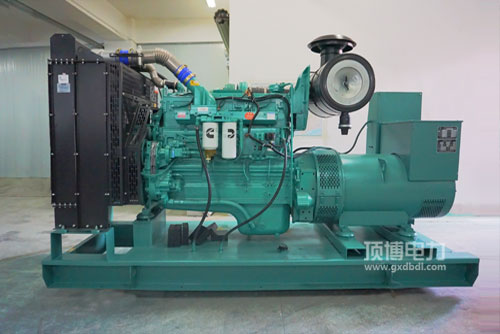

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用热车机气油条件性好: 品质可靠的气油操控体系，独特的STC、ESTC 分类操控体系，特色设计方案的火塞上边熔化室，压力压喷射气油，有效足够的做雾化，熔化有效足够的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用起行为瞬态效能非常好的: 好看的起行为综合设汁，合作康明斯与众不同的EFC软件系统，调节精密度较高，没有响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启倾向升额定功率高: 整体上结构设计省油的suv.造型搭建合适，执行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50做到华人非方向第二时候及美洲Tier2. Tier 3尾气排放标准法律法规必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可求性好， 打火机启用及定期维护日常保养友盒，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数空间 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯生产发电用汽车发驱力的基本特征：质量小， 缩减变高， 防雨百叶氧气升温，非常易重新启动，转移车载影音供电的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机产品型号	使用工作功率(kW)Prime Power	备用电源工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
